Reno Air Race Crash: Shameless Speculation

Two words: holy shit!

In the aftermath of an airplane crash all manner of misinformation hits the news.  It’s even worse if there are a lot of witnesses.  You’d think it would be otherwise, but people are in general terrible witnesses, especially when they see something shocking and violent, something that happens in the blink of an eye.

Last night and again this morning, in the wake of yesterday’s P-51 crash at the Reno Air Races, TV, radio, and newspapers were quoting witnesses stating that the pilot “spun out of control,” that he “wobbled his wings first,” that he deliberately “steered the plunging aircraft away from crowds.”

Eyewitness reports like these are almost always mistaken.  When witnesses use phrases like “spun out of control” or “wobbled his wings,” they usually mean something quite different from what a pilot means by spin, out of control, or wobble.

The accident sequence, from the instant the pilot pulls up out of the race to the instant he hits the tarmac, lasts 8 seconds.  When you watch the videos that have been released so far (here and here), it’s clear the pilot didn’t try to avoid anything … far from it, he plunged into a seating area in a near-vertical dive.  There’s no “wobble,” no “spin.”  In the first video, in fact, the aircraft appears to be in controlled flight.

Until the crash is investigated and a cause determined, we won’t know what happened … the airplane could have had mechanical or control problems, the pilot could have experienced some physiological crisis, it could have been a combination of both.  But I can’t resist a little shameless speculation.

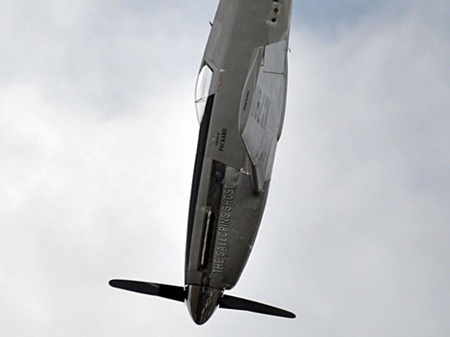

First, there’s this, a still photo of the aircraft just before impact:

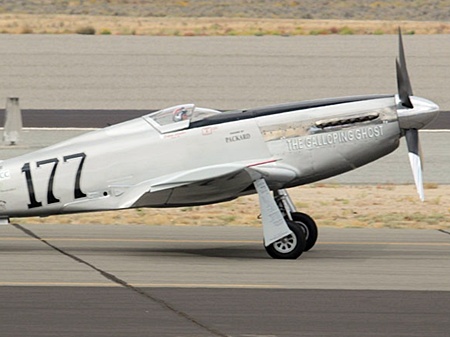

And this, a photo of the same aircraft taxiing out before the race:

You can’t help noticing the pilot’s helmeted head in the bottom photo, right in the center of the canopy.  Those Mustang cockpits are small to begin with, and when they modify these old fighters for racing they replace the normal canopies with tiny little bullet-shaped ones.  If the pilot sits in any sort of normal position, his or her head is going to be visible.  Does the top photo, then, suggest that the pilot was hunched forward with his head down?  It does to me.  And that indicates there was something physiological going on just before the crash.

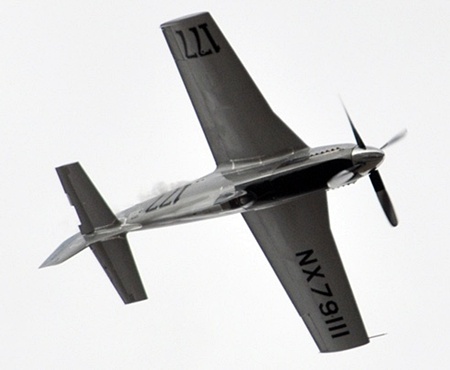

But then there’s this, another still photo taken as the aircraft rolled invented, just before it pulled down toward the ground:

In this photo, you can see a puff of smoke coming from the belly of the Mustang behind the cockpit area, and you can also see the trim tab is missing from the left horizontal stabilizer.  This photo suggests mechanical problems.  I don’t know if losing a trim tab on a P-51 flying at 450-500 miles per hour is enough to override the pilot’s muscle power on the stick … I sort of doubt it, but clearly something is going on with the flight controls.  And what about that smoke?

Last night, in the immediate aftermath of the crash, everyone thought the pilot was 80 years old.  On the Rachel Maddow Show, where the crash got nearly a half-hour of coverage, Rachel and her guests avoided speculating on age as a contributing factor but still managed to mention that erroneous age, oh, about 300 times.  On Twitter, people weren’t at all shy about making the connection: “YGBSM pilot was effing 80 yrs old?” was a typical tweet.

This morning we learned the pilot was actually 74.  Still pretty damn old, and you know people are going to start calling for age limits on pilot licenses, particularly if it turns out this pilot blacked out out under G loads or had a heart attack.

Until very recently, airline pilots had to retire at age 60.  Today the age limit is 65.  But if you’re not flying airliners, there really is no upper age limit.  You can fly as long as you’re fit to fly.  Pilots have to pass an FAA medical examination every year or two, and without a current medical certificate they can’t fly, so it’s not like the system doesn’t police itself.  In fact, the famous air show stunt pilot Bob Hoover was medically grounded in 1992 by the FAA, when Hoover was 72.  Hoover, by the way, also flew a Mustang in close proximity to crowds at air shows.

Still, you know there are going to be calls to ground all pilots over, say, 65 years of age.  Not to mention calls to ban air racing altogether.  I can’t help thinking of Jimmy Doolittle, the most famous air racer ever, who in 1932 at the age of 36, having won the three biggest prizes of international aviation — the Schneider, Bendix, and Thompson Trophies — retired from air racing, saying “I have yet to hear anyone engaged in this work dying of old age.”

Unlike Formula One or Indy Car racing, where team owners hire fit young men to race for them, in air racing the team owners themselves do the racing.  Most of these men are older, having gotten into warbird collecting and flying after long and successful business careers, and there is a lot of ego involved.  I’m glad to hear the pilot who crashed yesterday was only 74; but I must admit that when his age was reported as 80 in the immediate aftermath of the crash I was not a bit surprised.  Unless you’re a Saudi prince, you don’t amass the kind of money it takes to buy, rebuild, and maintain a WWII warbird when you’re in your 20s or 30s.  It’s a sport for rich old men.

© 2011, Paul Woodford. All rights reserved.

Share

4 comments to Reno Air Race Crash: Shameless Speculation

  • DickHerman

    Being 72, and having pulled a few Gs in my career, I seriously question the wisdom of any geezer performing in that environment. It’s one thing to go out and snatch a few Gs all alone over an unpopulated area, but an entirely different thing to subject an aging body to the repeated stresses of an air race.

    Having said that, we will have to wait for the accident report. I did notice in one photo in our paper that the tail wheel was extended, which suggests an electrical or hydraulic failure.

  • Dick, I just heard from an airshow photographer who knows a lot about unlimited racers. He registered at the blog in order to leave a corrective comment. I’m standing by to be set straight! Good catch on the tailwheel. I wasn’t sure whether the tailwheel was normally retracted or not. I’m pretty sure the elevator is mechanically controlled, but believe there is some hydraulic assist. And who knows with these modified planes?

  • zandr

    Paul, your introduction credits me too much. I’m far from an aviation expert, but a few things leapt out at me when I read your post. I found this post from your tweet, watching a few hashtags for new info on the tragedy at Reno.

    I’ve missed this year and last, but I’ve been to Reno a few times, and it’s an amazing environment. These guys are there out of a love of aviation and racing. The last time I was at Reno, I realized after the fact that I’d chatted with at least two Shuttle astronauts, and the space program never came up. We were talking about what they were flying that day, racing, and the beautiful old warbirds.

    So, easy one first, the things that leapt out from your post:

    “And what about that smoke?”
    That’s steam. Lots of these racers are “boilers”; they run total-loss cooling systems. These planes have been modified specifically for the racing format: eight laps of an eight mile circuit. If you only have to manage heat for ten minutes, you can clean up a lot of drag by replacing radiators and air inlets with 100 gallons of water (or methanol) and shedding heat by evaporating that coolant. From what I’ve seen and heard, the aircraft remained at full throttle, so the “boiler” would still be producing steam.

    “I don’t know if losing a trim tab on a P-51 … is enough to override the pilot’s muscle power on the stick”
    My understanding it that’s not a trim tab, but rather a servo tab. On aircraft with cable controls rather than hydraulics, it’s quite common for control surfaces to have a tab that reduces control forces. The servo tab moves opposite the main control surfaces, acting as a sort of ‘power steering.’ More here: http://en.wikipedia.org/wiki/Servo_tab

    Given that, it’s not at all surprising that the pilot was overpowered when the tab let go. This happened once before, see http://aafo.com/racing/news/98/voodoo.htm and http://www.warbird.com/voodoo.html. The short version is that losing that tab at 500mph gets you a 10G pull. Bob Hannah woke up at 9000 feet, plenty of altitude to limp a Mustang home. It appears that Jimmy Leeward wasn’t so lucky.

    As to the tailwheel, I can’t find any citations, but the way it’s been mentioned in passing makes me think that the tailwheel coming out is a known thing after a high-G pull in a Mustang.

    Jimmy Leeward had a current 2nd class medical, and was rated to fly almost anything under the sun: http://www.av8rdan.com/2011/09/before-assuming-age-was-the-cause-of.html He (and the Ghost) had more experience racing than anyone else out there.

    This was a great tragedy, and as far as I know the first time any spectators had been hurt at Reno. I can see a lot of rethinking of the event after this, but I hope that the races go on.

    Thanks for the opportunity to chime in.

    -Zandr

  • zandr, thanks for the valuable insights. I’ve just been reading up on those servo tabs and how important they were on those fast WWII-era fighters. When I flew T-37s we made do with trim tabs only, but then again we didn’t fly much faster than 300 knots. All the other aircraft I flew had hydraulic actuators and all-moving stabs. I don’t assume Leeward’s age was a factor, but many will — and we all know there will be howls to ground all the geezers — which is why I took a stab at explaining the medical certification of pilots. Leeward didn’t just think he was fit to fly, he proved it every time he saw an FAA medical examiner.
